Introduction
In our previous blog post, we explained how an algebraic manipulation of the Multi-Head Latent Attention (MLA) formula results in a more efficient implementation, known as the 'weight absorption' trick. In the same post, we speculated that the low-rank projection used by the DeepSeek team is more expressive than the previous state-of-the-art Group Query Attention (GQA). For those who have not read it, check it out here, as we will reuse definitions to save space.
In this blog, we want to examine the theoretical performance of the MLA kernel and the KV cache computation. The roofline model is a common way to analyze an algorithm; it plots intensity on the x-axis against performance on the y-axis. The concept is well covered in [1] (All About Rooflines) and [2] (Transformer Inference Arithmetic). Understanding the intensity of a kernel helps to determine if it is memory bound or compute bound thus allowing one to decide what to focus optimizations on.
An accelerator's memory bandwidth and peak computational FLOPs determine the Roofline model. A program (kernel) will be either memory-bound or compute-bound depending on the amount of data that must flow to the computational cores and the potential for data reuse. In Figure 1, the algorithm A
is memory-bound, meaning the accelerator's cores spend significant time idle waiting for data. In contrast, algorithm B
is compute-bound, where processing capacity rather than data access is the bottleneck. Both points fall below the performance boundary, indicating potential for optimization. However, both kernels will remain in their respective regimes. The plotted Ridge Point marks where operational intensity transitions from memory-bound to compute-bound regions and varies for each accelerator.

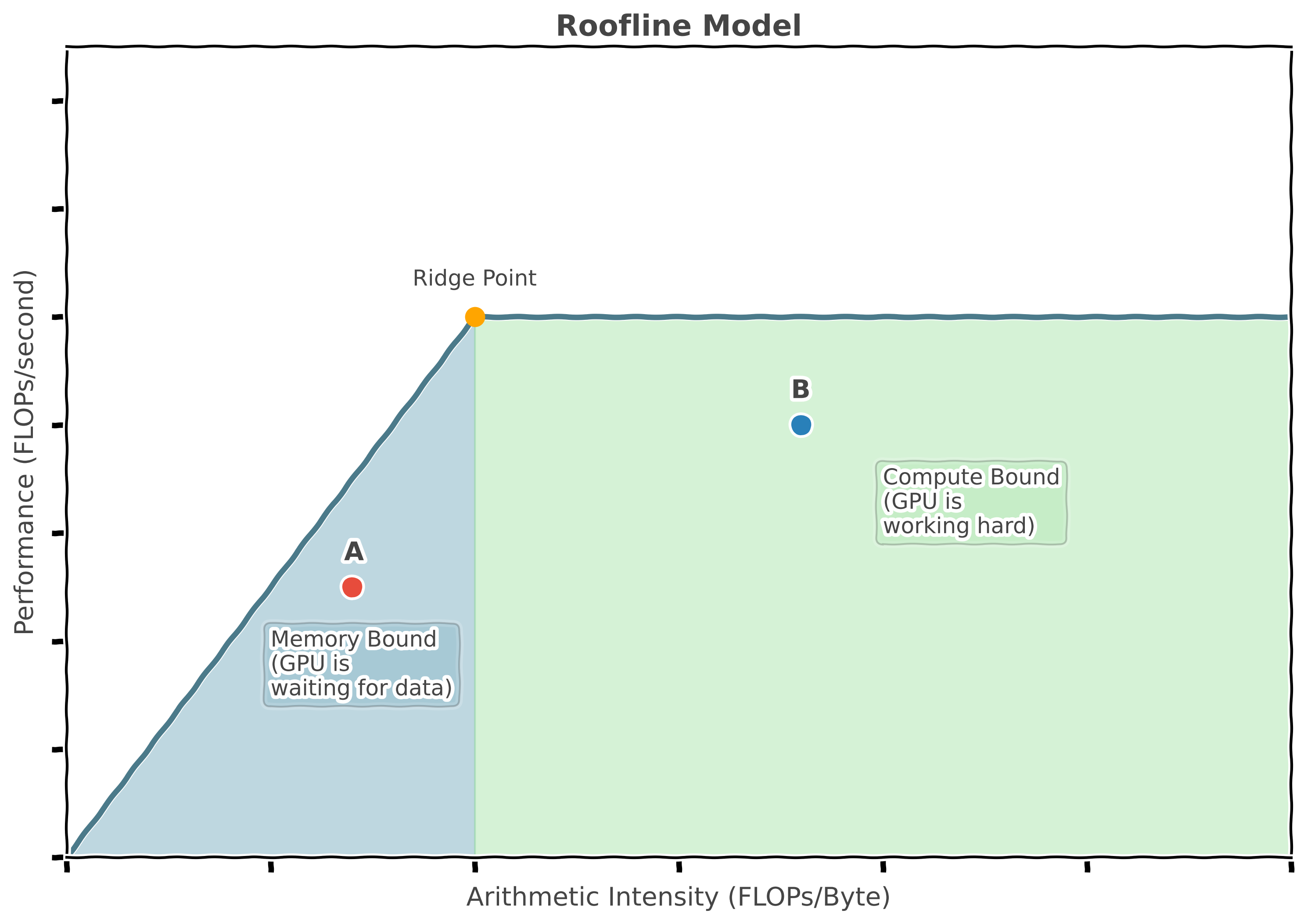

Figure 1: A roofline plot that helps determine whether your algorithm is compute bound or memory bound on a given accelerator.
During autoregressive generation, attention mechanisms become memory-bound operations, in contrast to their compute-bound nature during training. This performance limitation stems mainly from how each batch element now has only a single query vector that must access the KV cache for all previous tokens. Unlike training, where increasing batch size improves computational efficiency, inference with autoregressive models doesn't benefit from the same optimization. This memory overhead creates a bottleneck that limits performance. Additionally, the KV cache can grow so large that it exceeds GPUs' high bandwidth memory (HBM) capacity. Therefore, to measure if MLA has improved theoretical performance, we must analyze computational FLOPs, memory bandwidth usage, and total memory requirements—all of which affect token generation performance.
Transformer Arithmetic Revisited for MLA
Let's first look at some of the key parameters of the DeepSeek V3 model, which we will use throughout the calculations; these are summarized in Table 1. Through the weight absorption technique (detailed here), MLA can be viewed as having only a single Key-Value head shared across all query heads. The Key head is concatenated with the RoPE embedding, which has a dimension of 64, while the Value uses only the compressed KV cache without any concatenation. In this blog, we will focus solely on the MLA operator; therefore, we will ignore the MLP layers for now.
Model | (kv_heads ) |
(q_heads ) |
(k_dim ) |
(v_dim ) |
(h_dim ) |
n_layers |
(seq_len ) |
KV size | Total GB |
---|---|---|---|---|---|---|---|---|---|
Llama-13b | 128 | 128 | 40 | 40 | 5120 | 40 | 8192 | 2 | 6.26 |
DeepSeek V3 MHA equivalent | 128 | 128 | 128 | 128 | 7168 | 61 | 8192 | 2 | 30.50 |
DeepSeek V3 GQA equivalent | 24 | 128 | 128 | 128 | 7168 | 61 | 8192 | 2 | 6.10 |
DeepSeek V3 MLA | 1 | 128 | 576 | 512 | 7168 | 61 | 8192 | 1 | 0.51 |
Table 1: Total memory requirement for different model variants (B=1
), showing MLA greatly reduces memory requirements.
Table 1 presents the total memory requirements for the KV cache across all attention layers. All variables are in FP16. For standard attention mechanisms, represents the key head dimension, while represents the value head dimension. For MLA, is the dimension of the compressed vector stored in the KV cache per token (shape (B, L, C_v
)). The represents the effective dimension used during key-side attention computations, achieved by combining the stored vector with RoPE embeddings (512+64=576
).
For comparison, we've included memory requirements for equivalent models using 5-to-1 grouping GQA (Grouped Query Attention), standard MHA (Multi-Head Attention), and a small Llama model with MHA. The KV size column represents the two variables for keys and values, whereas there is only one equivalent in MLA.
The KV cache's memory storage requirements for DeepSeek V3's MLA are dramatically reduced—approximately 60 times less than the MHA equivalent and 12 times less than the GQA equivalent implementation. Therefore, MLA can run longer sequences without out-of-memory errors.
Computing KV cache
Before performing the MLA forward pass, one must update the KV cache for the current token. DeepSeek V3 includes query down-projection and up-projection, but we'll focus specifically on the KV-cache elements and the kernel calculation.
The KV cache calculation that needs to be performed per layer is:
$$
\mathbf{c}i^{\mathbf{kv}} = \mathbf{W}{\mathbf{dkv}} \mathbf{x}_i
$$
For a batch size B
, this matrix-vector multiplication requires:
One is performing one matrix-vector multiplication per batch element for each layer. The associated memory access (in bytes) is:
The weight matrix is reused across the batch, so we count it only once. Compare this with the normal computation of doing the same for and detailed in [2], which involves,
Memory access (bytes):
Note that in the memory access calculation, we have also included the writing of the output back to HBM. Using these formulas, we can now calculate the floating point operations and memory bandwidth used as well as the intensity:
Model | GFLOPs | Memory Bandwidth GB | Intensity (FLOPs/Byte) |
---|---|---|---|
Llama-13b | 4.19 | 4.20 | 1.00 |
DeepSeek V3 MHA equiv. | 28.65 | 28.66 | 1.00 |
DeepSeek V3 GQA equiv. | 5.37 | 5.37 | 1.00 |
DeepSeek V3 MLA | 0.50 | 0.50 | 1.00 |
Table 2: KV calculations (B=1
) showing reduced memory and bandwidth for MLA, although similar intensity.
Therefore, compared to the GQA equivalent, MLA requires approximately 12x fewer FLOPs and memory bandwidth to compute the KV cache values (Table 2). The reduction is even more dramatic compared to the MHA equivalent (~64x). Despite similar algorithmic intensity for the computation, the lower FLOP count and memory access for MLA mean that this step will be processed significantly faster. This is particularly useful in prefill phase where computation of the KV cache for the promopt is needed for generation.
Computing Attention
Having analyzed the KV cache update, we now turn to the attention mechanism itself. The attention calculation involves the dot-product attention operation using the updated KV caches. During autoregressive generation (processing one new token at a time), using a tiled fused kernel like FlashAttention involves these main computational steps per layer detailed in [1]:
- QK Matmul: Multiplying the single query vector with the Key cache.
- AV Matmul: Multiplying the attention scores (after softmax) with the Value cache.
For a query length of one and KV cache sequence length of L
, the total FLOPs across per layer are approximately:
The memory access involves reading the query vector, reading the K and V caches, and writing the output vector. The total memory access (bytes) across all layers is:
The core idea of MLA with weight absorption during the generation phase is to avoid decompressing the KV cache. Instead, the query is projected to the compressed dimension , and the attention calculations (scores and output aggregation) happen in this compressed space. For the following analysis , therefore RoPE excluded and so RoPE concatenation included as shown in Table 1. The steps are thus:
- Query Absorption: Project query
q
(shapeH_q, K
) down usingW_uk
(shapeH_q, K, C
). FLOPs per layer =2 * H_q * K * C
. - Attention Scores: Compute scores between absorbed query
κ
(shapeH_q, C
) and compressed cache (shapeL, C
repeatedH_q
times). FLOPs per layer =2 * H_q * L * C
. - Attention-Value Multiplication: Multiply attention probabilities (shape
H_q, L
) by the compressed Value cache . FLOPs per layer =2 * H_q * L * Cv
. - Output Projection: Project aggregated context (shape
H_q, C_v
) up usingW_uv
(shapeH_q, K, C_v
). FLOPs per layer =2 * H_q * C_v * K
.
Steps 2 and 3 are the equivalent of an adjusted flash attention style kernel. While we will now compute the roofline calculations for the attention kernel, it is worth bearing in mind that there is additional projection overhead that would be carried out by other kernels that would not be there in GQA or MHA.
The total FLOPs for the kernel are then the sum of the Attention Scores (Step 2) and Attention-Value Multiplication (Step 3):
The memory requirements can be broken down to Bytes = (Read KV + Read Q + Write O)
so:
We need to assume a GPU architecture to compute a roofline model, so we will use a H200. Therefore, from the Nvidia H200 Datasheet [3], we can calculate the arithmetic intensity of the accelerator using the peak dense FP16 performance:
This level ($I_{ridge} \approx 206.3$ FLOPs/byte) then becomes the ridge point that is shown in Figure 1. With this information, we can also compute the theoretical FLOPs/s (Floating-point Operations Per Second) performance as:
Putting this all together we get the following results:
Model | GFLOPs | Memory Bandwidth GB | Intensity (FLOPs/Byte) | Theoretical TFLOPs/s |
---|---|---|---|---|
Llama-13b | 0.17 | 0.16 | 0.98 | 4.68 |
DeepSeek V3 MHA equiv. | 0.54 | 0.53 | 1.00 | 4.80 |
DeepSeek V3 GQA equiv. | 0.10 | 0.10 | 1.00 | 4.85 |
DeepSeek V3 MLA | 2.28 | 0.01 | 235 | 990 |
Table 3: Attention Operator Table (B=1
) with the intenesity calculation and theoretical TFLOPs/s
By redesigning the attention mechanism, MLA has fundamentally changed the nature of the attention kernel (Table 3). The number of floating point operations has increased approximately 4 times versus standard MHA and 22 times versus GQA. However, this trade-off is clearly intentional because MLA dramatically increases the arithmetic intensity of the kernel—over 200 times compared to traditional approaches. It is worth noting that at low sequence lengths L<1394
the intensity will be below the ridge point and so thus a memory bound kernel.
The MLA kernel at reasonable sequence lengths is now no longer memory bound but compute bound, the intensity has increased significantly meaning the kernel spends less time idle. Furthermore, despite performing more calculations, the time elapsed will be substantially reduced because GPUs excel at handling highly parallel computations.
Essentially, MLA makes a strategic trade: it increases the raw number of computations within the attention kernel but drastically reduces the required memory access relative to those computations. This boosts operational intensity and ultimately performance.
Benchmarking MLA v GQA Kernels

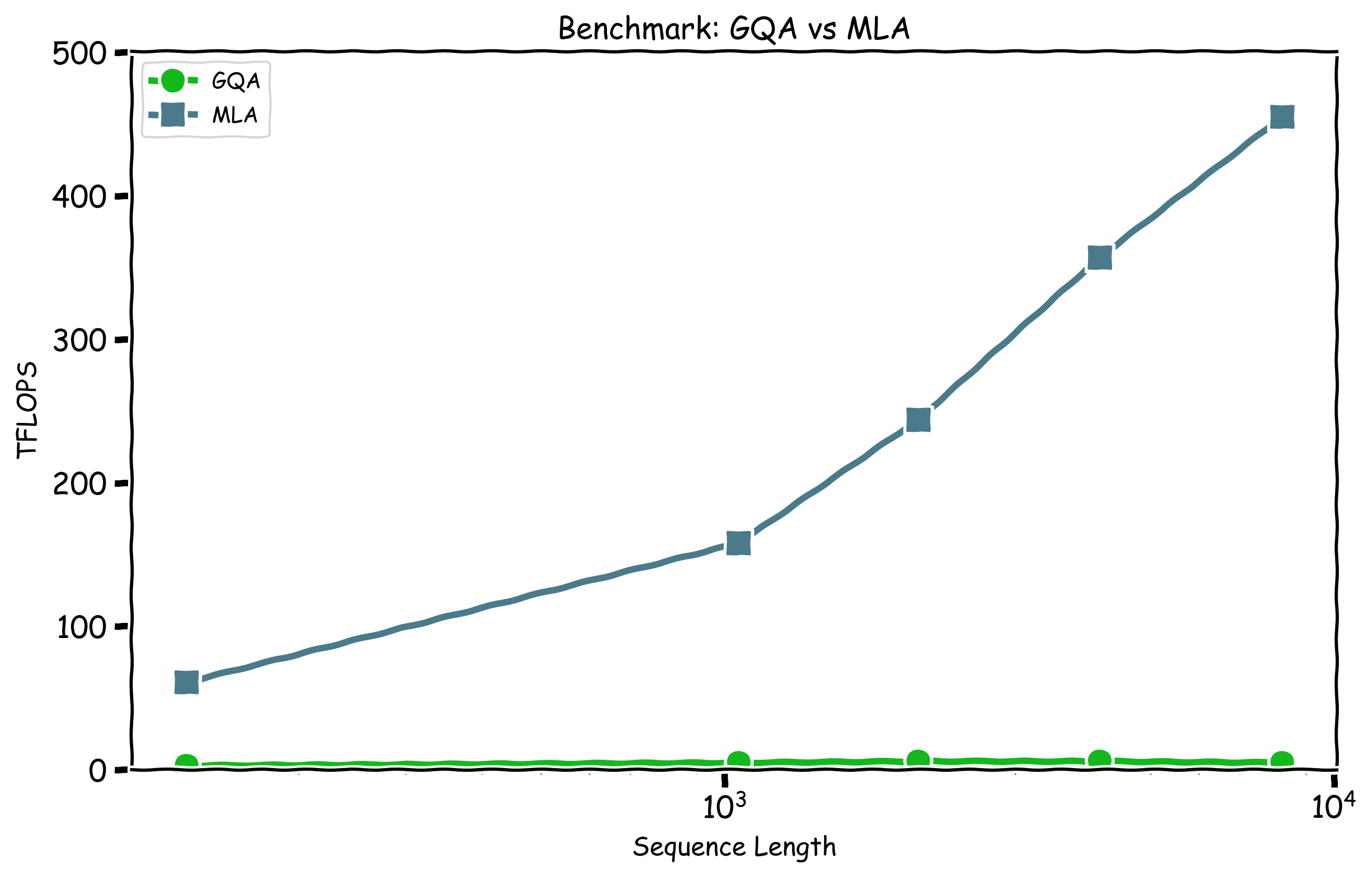

Figure 2: A comparison of TFLOPS between the GQA kernel and MLA kernel with a batch size of 32 (B=32) across increasing sequence lengths.
In Figure 2 we utilize the main inference kernel library FlashInfer and their implementation of GQA and MLA. The benchmark code is available in our repository here. As predicted by our theoretical analysis, the MLA kernel achieves significantly higher TFLOPs/s when properly implemented, as it overcomes memory bandwidth limitations. In contrast, the GQA kernel's TFLOPs/s performance remains flat regardless of sequence length.
Conclusions
In essence, MLA optimizes transformer inference by drastically cutting KV cache memory and boosting the attention kernel's operational intensity. This shift from memory-bound towards compute-bound allows for significantly higher achieved TFLOPs/s and faster token generation, validating MLA's effectiveness for efficient deployment.
References
- Austin et al. (2025) All About Rooflines. The Scaling ML Book.
- Chen, Carol. (2023). Transformer Inference Arithmetic.
